HardTanh Explained: A Faster Alternative to Tanh

Tanh is a useful activation function when you want bounded, zero-centered outputs, but it comes with a computational cost because it relies on exponentials. HardTanh keeps the same basic idea while replacing the smooth curve with a simple clipped line, which makes it much cheaper to evaluate.

That trade-off is why HardTanh still shows up in practical systems. It is not the default activation for modern deep networks, but it remains useful when efficiency, bounded outputs, and hardware-friendliness matter more than smoothness.

Why do we need HardTanh?

Standard Tanh

The hyperbolic tangent maps any real number to the range (-1, 1):

$$ \tanh(x) = \frac{e^x - e^{-x}}{e^x + e^{-x}} $$

That gives tanh three useful properties:

bounded output
symmetry around zero
smoothness everywhere

Those properties made tanh popular, especially in older neural network architectures. The downside is that tanh is more expensive to compute than a simple clamp-based operation.

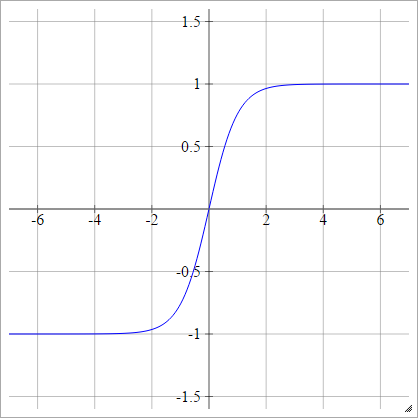

Tanh Graph

In many practical settings, that smoothness is not essential. Sometimes all you really need is a bounded, zero-centered activation that is cheap to compute. That is the gap HardTanh fills.

Piecewise-linear Approximation

A piecewise-linear approximation replaces a curve with a small number of straight-line segments. Instead of using one complicated formula everywhere, it uses a simple rule in each region.

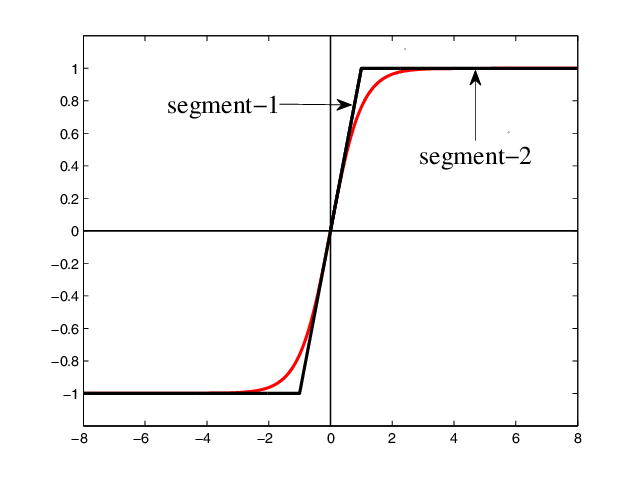

Piecewise-linear Approximation of Tanh Graph

HardTanh approximates tanh with three regions:

for very negative inputs, the output is fixed at $-1$
for inputs between $-1$ and $1$, the output is the input itself
for very positive inputs, the output is fixed at $1$

So HardTanh keeps the bounded, zero-centered behavior of tanh, but replaces the smooth curve with something much simpler.

How HardTanh works

HardTanh is defined as:

$$ \operatorname{HardTanh}(x) = \begin{cases} -1, & x < -1 \ x, & -1 \le x \le 1 \ 1, & x > 1 \end{cases} $$

An equivalent implementation-friendly form is:

$$ \operatorname{HardTanh}(x) = \min(1, \max(-1, x)) $$

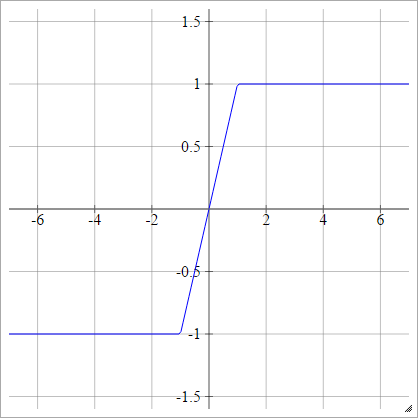

HardTanh Graph

The intuition is simple: HardTanh is just the identity function clipped to the interval [-1, 1].

If the input is already inside the interval, leave it unchanged.
If it is smaller than $-1$, clip it to $-1$.
If it is larger than $1$, clip it to $1$.

Inside the central region, the function behaves like the identity, so the gradient is constant there. Outside that region, the activation saturates.

The derivative is:

$$ \operatorname{HardTanh}’(x) = \begin{cases} 0, & x < -1 \ 1, & -1 < x < 1 \ 0, & x > 1 \end{cases} $$

A simple PyTorch implementation is given below:

import torch

def hardtanh(
    x: torch.Tensor,
    min_val: float = -1.0,
    max_val: float = 1.0,
) -> torch.Tensor:
    """
    Compute the HardTanh activation function.

    Args:
        x: Input tensor.
        min_val: Minimum output value.
        max_val: Maximum output value.

    Returns:
        Tensor clipped to [min_val, max_val].
    """
    return x.clamp(min=min_val, max=max_val)

def main():
    x = torch.tensor([-2.0, -0.5, 0.0, 0.5, 2.0], requires_grad=True)

    y = hardtanh(x)
    print("Output:", y)
    # tensor([-1.0000, -0.5000, 0.0000, 0.5000, 1.0000])

    y.sum().backward()
    print("Gradient:", x.grad)
    # tensor([0., 1., 1., 1., 0.])

if __name__ == "__main__":
    main()

Trade-offs for using HardTanh

Property	HardTanh	tanh	Sigmoid	ReLU
Cheap computation	Yes	No	No	Yes
Bounded output	Yes, [-1, 1]	Yes, [-1, 1]	Yes, [0, 1]	No
Symmetric around zero	Yes	Yes	No	No
Linear gradient region	Yes	Limited	Limited	Yes
Hardware friendly	Yes	Less so	Less so	Yes
Smooth everywhere	No	Yes	Yes	No

HardTanh sits somewhere between tanh and ReLU. It keeps the bounded, zero-centered behavior of tanh while being much cheaper to compute, and it is more controlled than ReLU because the output cannot grow without bound. Compared with sigmoid, it is also zero-centered and has a broader linear region. The trade-off is that HardTanh is not smooth, and once the activation saturates outside [-1, 1], the gradient becomes zero.

When to use HardTanh

When we need outputs to stay strictly in [-1, 1]
When we are working with quantized, binary, or low-precision models
When cheap inference matters on mobile, edge, or specialized hardware
When a bounded, zero-centered activation is more important than smoothness

When to avoid HardTanh

When smoother activations work better empirically
When saturated zero gradients are likely to hurt optimization
When you are using very deep modern architectures

Final Thoughts

HardTanh is not a general-purpose winner, but it is still a useful tool in the right setting. If we need bounded outputs and cheap computation, it is a practical alternative to tanh. If smoothness matters more, tanh or other modern activations are usually a better fit.
